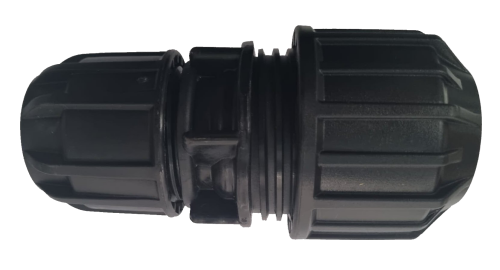

The Unifit product components are designed to seal the various diameters of material pipes and are especially designed for the water transportation industry.
The fittings are suitable for different pipe diameters and for tubes of different kind of materials (metal and plastics).
The Unifit provides means of connecting Polyethylene pipes to a variety of plumbing pipe materials, using push-fit technology for fast connection.
Pipes made of materials such as Copper, Polybutylene and PEX can be inserted through the pushfit side of the fitting ensuring optimum sealing and griping of the system.
Polyethylene pipes are inserted from the other side of the fitting which is operated with our 250 series mechanical fastening mechanism.
Features
- The connector has a particularly flexible mechanism allowing connections to diameters in the 15-34mm range.
- Double sealing – hydraulic and mechanical.
- Working pressure: PN16.
| DESCRIPTION | CODE | PRICE |
|---|---|---|
| Unifit coupling PE 20mm to Universal 15-22mm | 250 15 M 50 20 | £18.74 |
| Unifit coupling PE 25mm to Universal 15-22mm | 250 15 M 50 25 | £23.50 |
| Unifit coupling PE 25mm to Universal 20-27mm | 250 21 M 50 25 | £25.13 |
| Unifit coupling PE 32mm to Universal 20-27mm | 250 21 M 50 32 | £33.14 |
| Unifit coupling PE 25mm to Universal 27-34mm | 250 27 M 50 25 | £33.14 |
| Unifit coupling PE 32mm to Universal 27-34mm | 250 27 M 50 32 | £37.99 |
